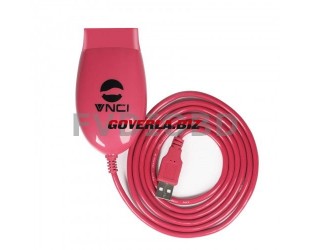

VNCI J2534 Nano Compatible With J2534 Passthru IDS HDS TIS Forscan SDD PCM-Flash & ELM327 Diagnose J1979

Highlights:

1. Support J2534 and ELM327 mode in one device. Switch mode automatically.

2. More speedup. Faster communication and reprogamming.

3. More stability. Never let you down while reprogamming.

4. Portable and convenient. Small package and easy to carry.

Product Functions:

1. Support most all of J2534 compatible software(HDS, TIS, ODIS, JLR SDD, PCMFLash...).

2. Support most all of ELM327 software(ELMConfig, Forscan, ScanMaster...).

3. Support E-C-U repro/garmming in J2534 mode with pro/gramming voltage.

4. Supply free software for diagnosing J1979 compatible vehicles.

5. Support Windows 8/10/11, 32/64bit  (WIN7 is not supported)

6. Supported languages:

ODIS: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech ,Russia, Greece, Chinese

Fit for Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese

Fit forhonda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese ,Chinese

JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean

Fit for Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian

scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian

pcmflash: English, Russian

Note for pcmflash 1.20: Customers need to buy a dongle (pcmtuner dongle ), and only supports the OBD part. It does not support bench, boot, vag, dsg and gearboxes.

VNCI J2534 Nano protocol configuration:

1. ISO15765 (Standard/Extended frame).

2. ISO9141.

3. ISO14230.

4. J1850 PWM (Support IFR and 2X speed mode).

5. J1850 VPW (Support 4X speed mode).

6. Pro/gamming voltage.

7. Short to ground.

8. ELM327 with command set version 1.5a

VNCI J2534 Nano hardware configuration:

1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).

2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).

3. J1850 PWM (OBDII PIN 2 and PIN 10).

4. J1850 VPW (OBDII PIN 2).

5. Pro/gamming voltage (OBDII PIN 12 or PIN 13. Pro/gamming voltage up to 20V).

6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).

7. Dimension(L*W*H): 95mm*55mm*23mm

8. Environmental:-20℃-45℃(-4℉-113℉)

9. Vehicle voltage requirements: 8-18V DC

10. Vehicle connection: Molded DLC3(OBDII-16)

11. Host connection: USB 2.0

VNCI NANO J2534 Function List:


Package Includes:

1pc x VNCI J2534 Nano.
